Block 50mm single swivel - Tersma

Tersma Sailing Products

Plain Bearing Blocks are engineered for lightweight, strength, and superior handling. We use stiff glass fiber reinforced nylon to provide metal-like strength, self-lubricant sheave reduces friction and increase efficiency to control the line and 316 stainless steel plain bearing to provide smooth rotation. Plain Bearing blocks give sailors easier power transfer and less wear on rope.

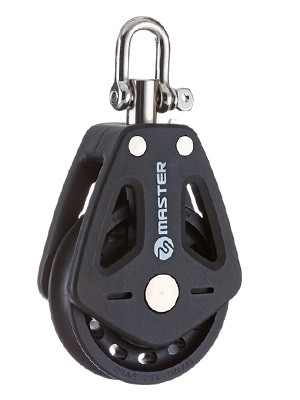

50mm Single swivel Block - BB-0501F
Sheaves:         50mm

Maximum line:  10mm

Weight:            70g

Max. working load: 522kg

Max breaking load: 1050kgs

• Sheave: Self-lubricant acetal composite
• Ball Bearing: 316 stainless steel plain bearing
• Sideplates/frames: Reinforced glass fiber Nylon composite with UV stablized
• Shackle: Forged  Grade 316 stainless steel / tool-free lever lock mechanism

APPLICATIONS

Mainsheet system

Mast foot blocks and Mast head blocks

Halyard tuning and vang

Control lines on boats of all sizes
